FD30 TIMBER FIRE DOORS

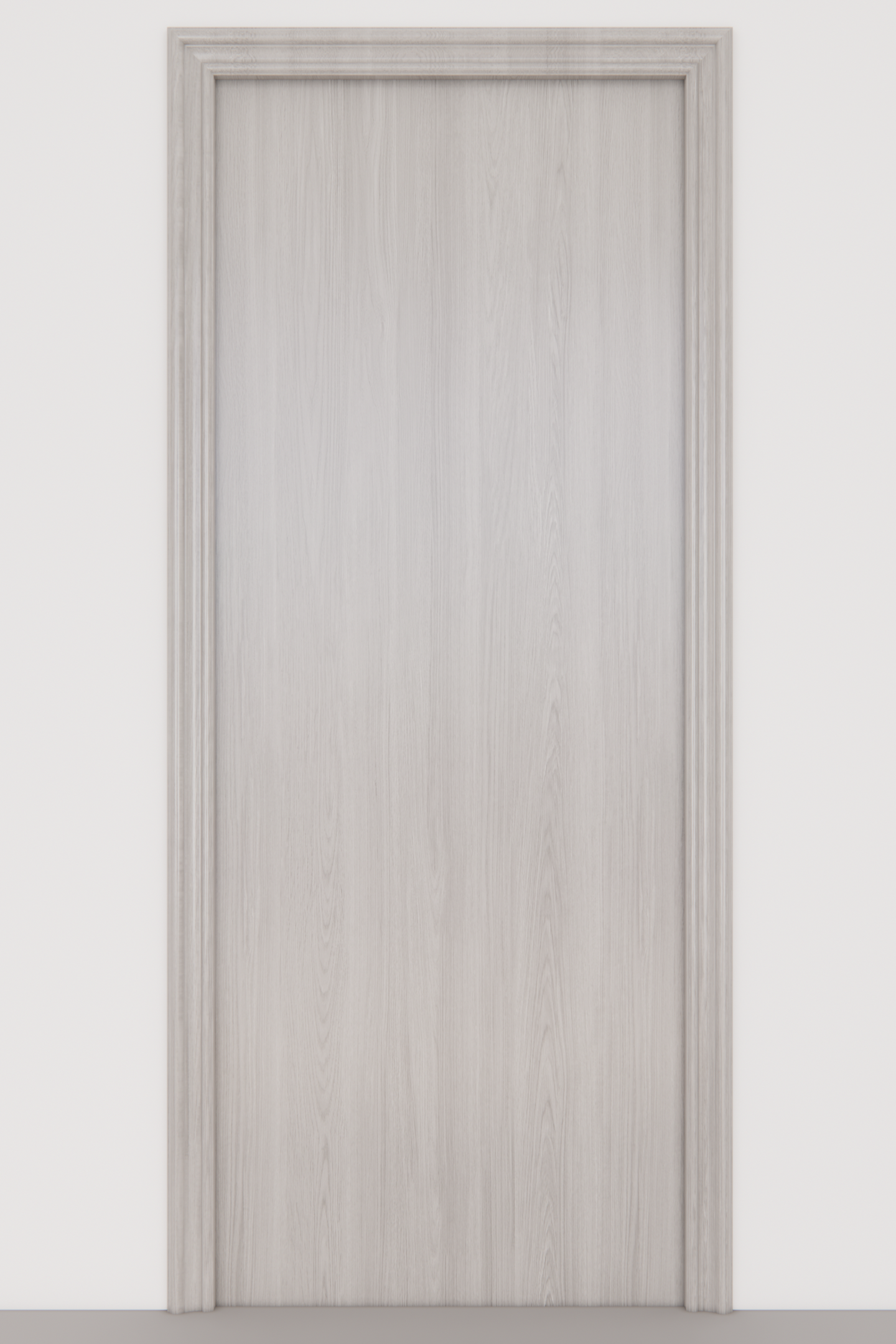

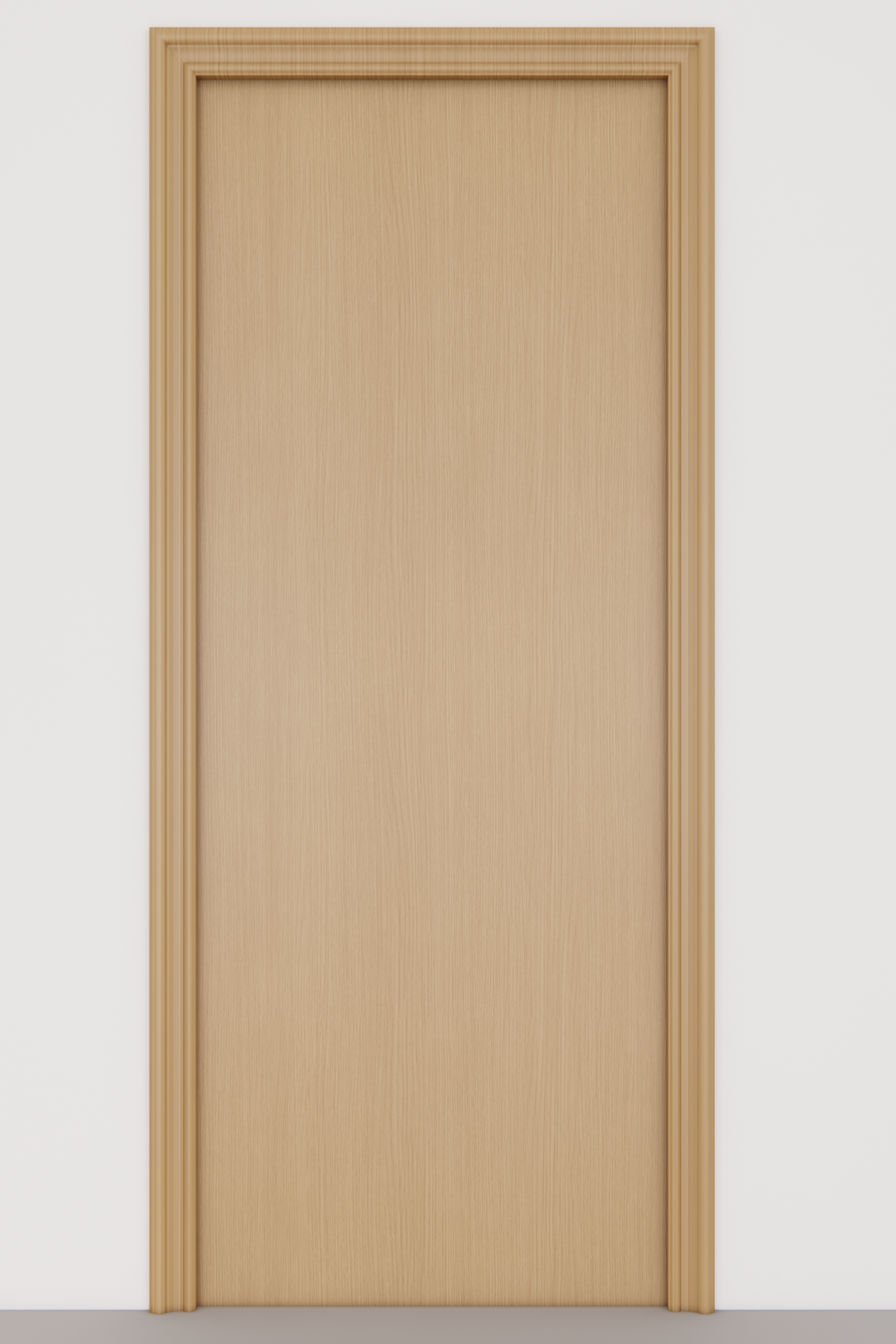

Timber Door Leaf Specification

  1. Door Thickness: 45 mm

  2. Finish & Colour Options:
    (a) Flush, White, Woodgrain
    (b) Flush, Natural Wood Colour, Woodgrain
    (c) Flush, Light grey, No Grain

  3. Standard Sizes (W × H, mm):
    (a) 762 × 1981
    (b) 838 × 1981
    (c) 762 × 2040
    (d) 838 × 2040
    (e) Custom sizes available upon request

  4. Core Construction: Solid timber core

  5. Fire Resistance: 30 minutes

  6. Smoke Control: Optional

  7. Surface Finish: Fully prefinished – no on-site painting required

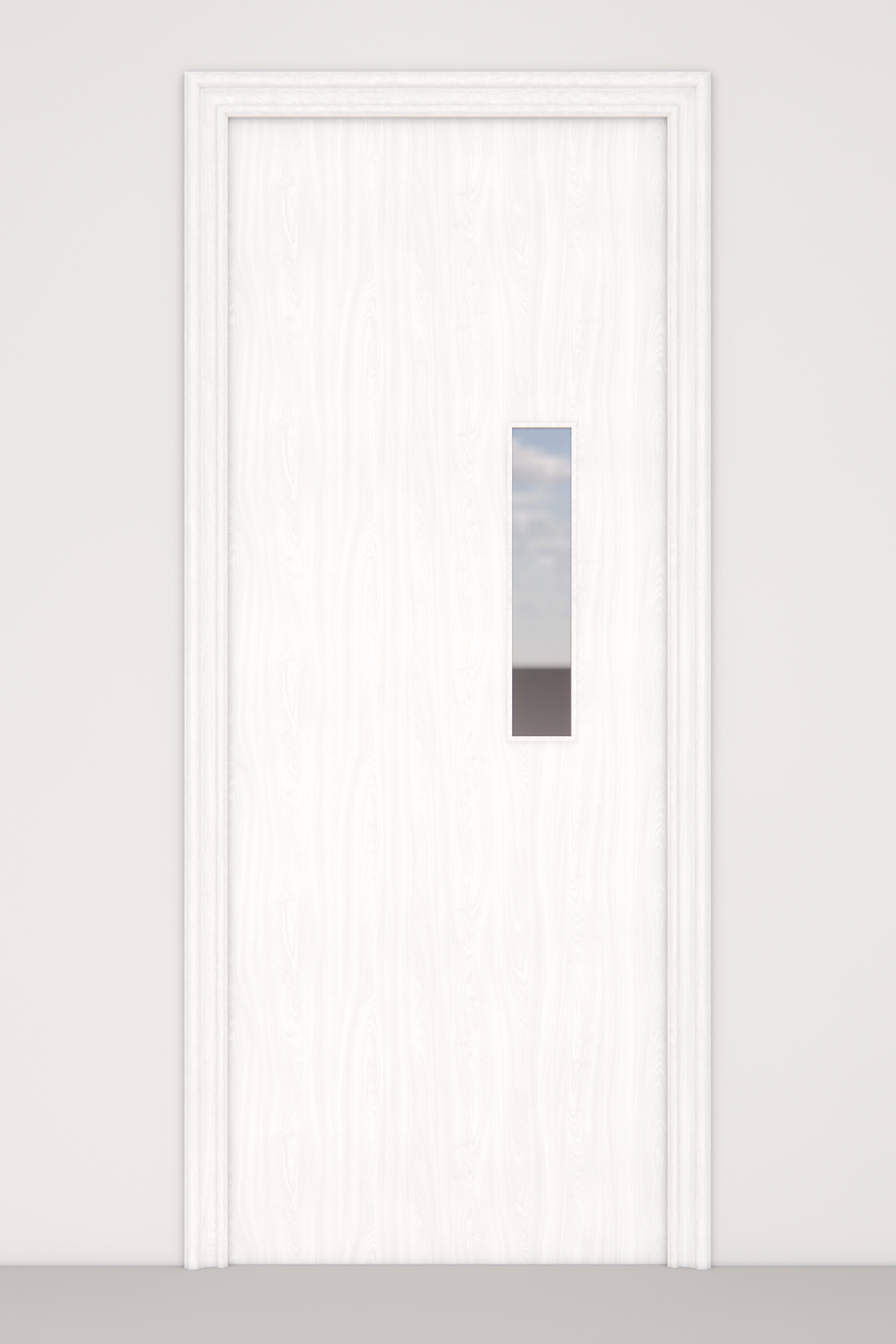

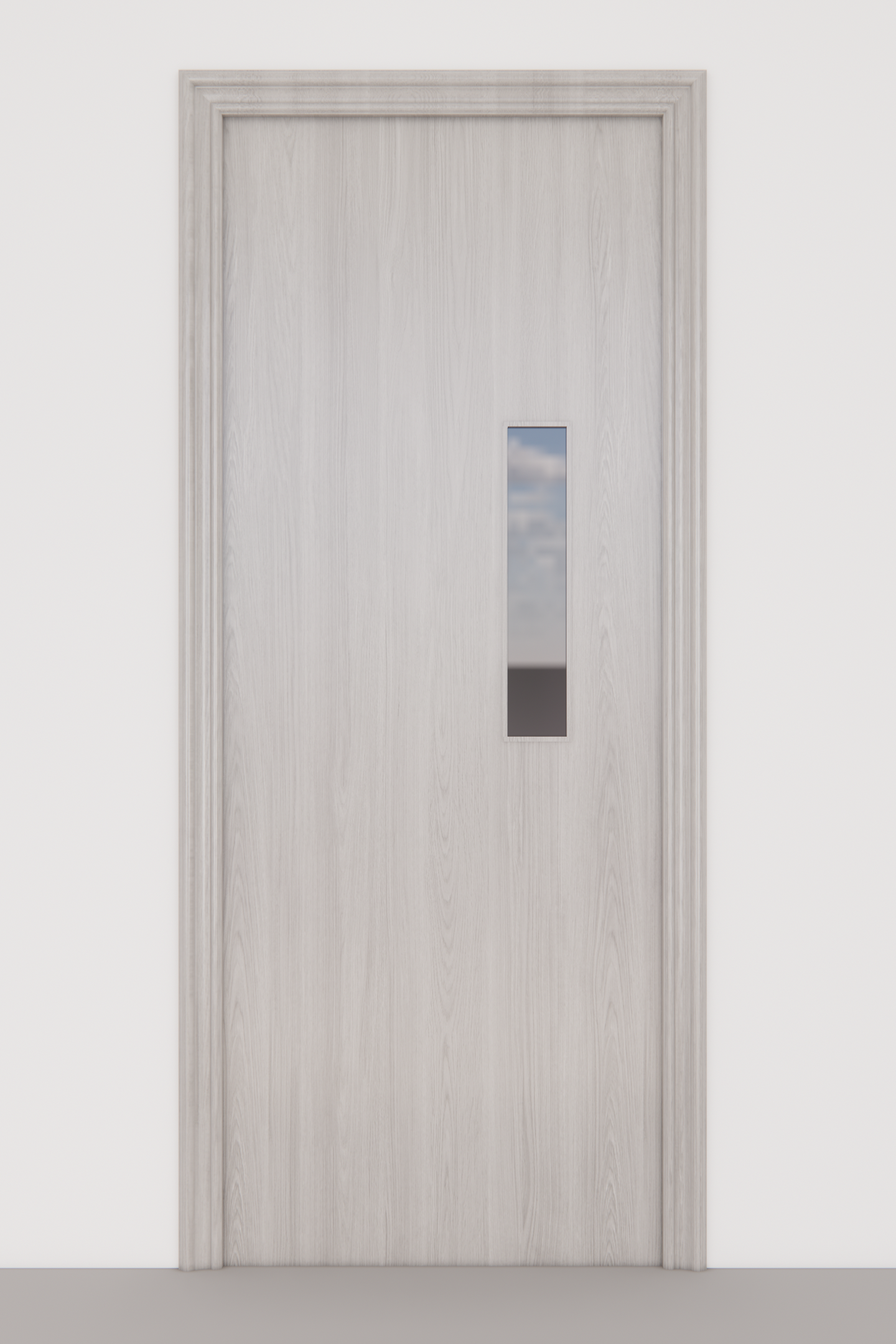

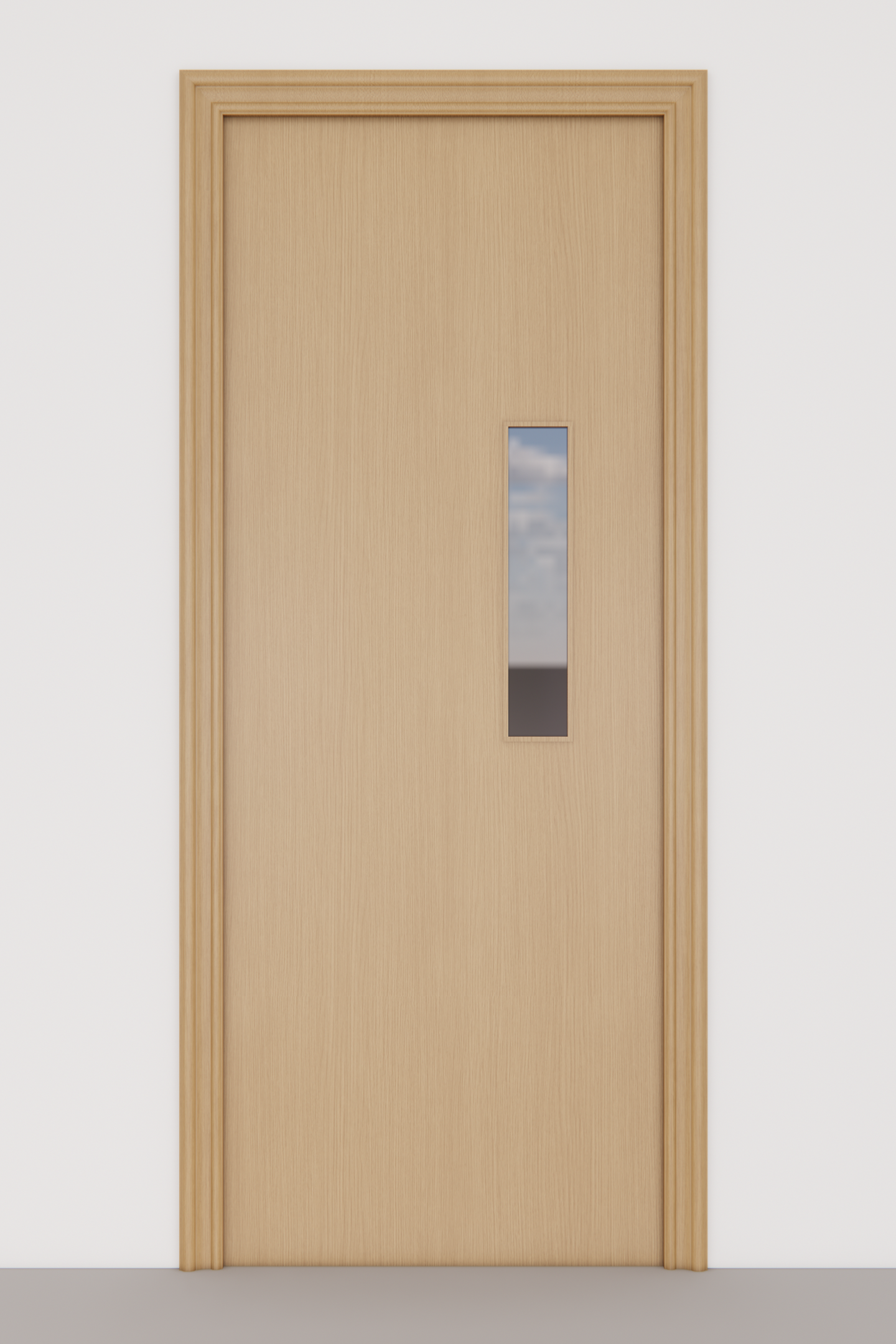

Timber Door Leaf (with Vision Panel) Specification

  1. Door Thickness: 45 mm

  2. Finish & Colour Options:
    (a) Flush, White, Woodgrain
    (b) Flush, Natural Wood Colour, Woodgrain
    (c) Flush, Light grey, No Grain

  3. Standard Sizes (W × H, mm):
    (a) 762 × 1981
    (b) 838 × 1981
    (c) 762 × 2040
    (d) 838 × 2040
    (e) Custom sizes available upon request

  4. Core Construction: Solid timber core

  5. Fire Rating: 30 minutes

  6. Smoke Control: Optional

  7. Vision Panel (Glazing):

    (a) Includes 30 min fire-rated glass

    (b) Glass thickness: 15 mm

  8. Surface Finish: Fully prefinished – no on-site painting required

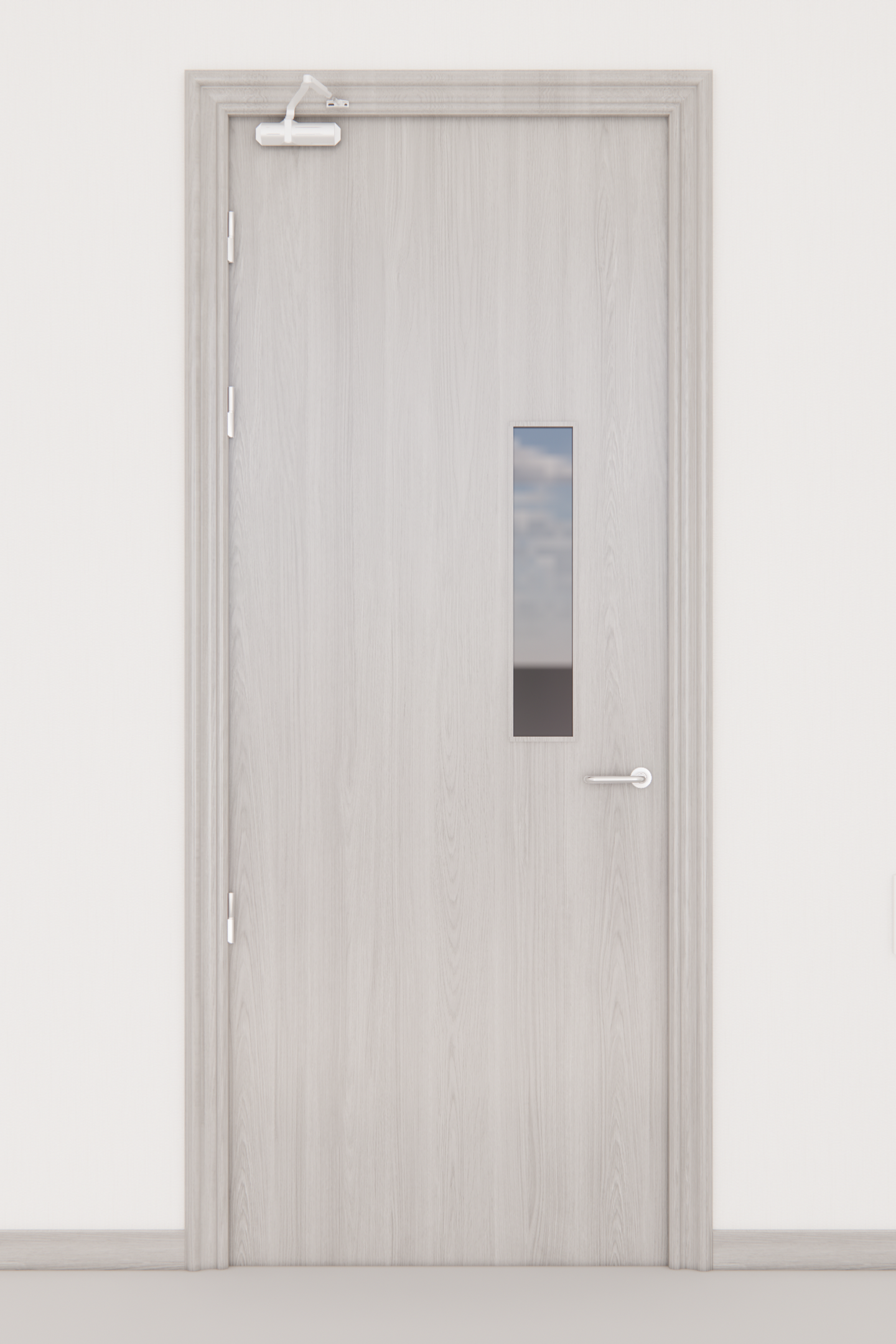

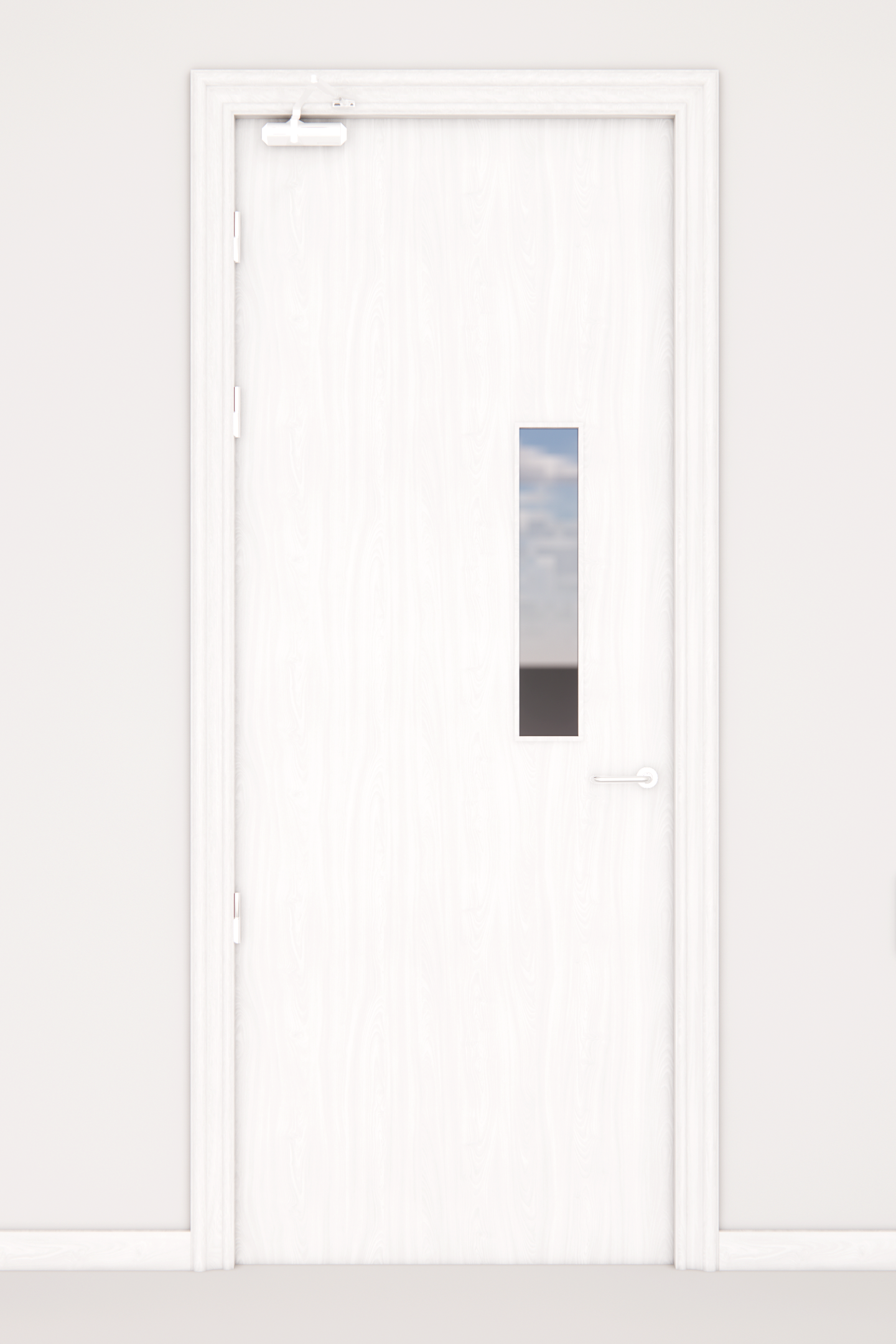

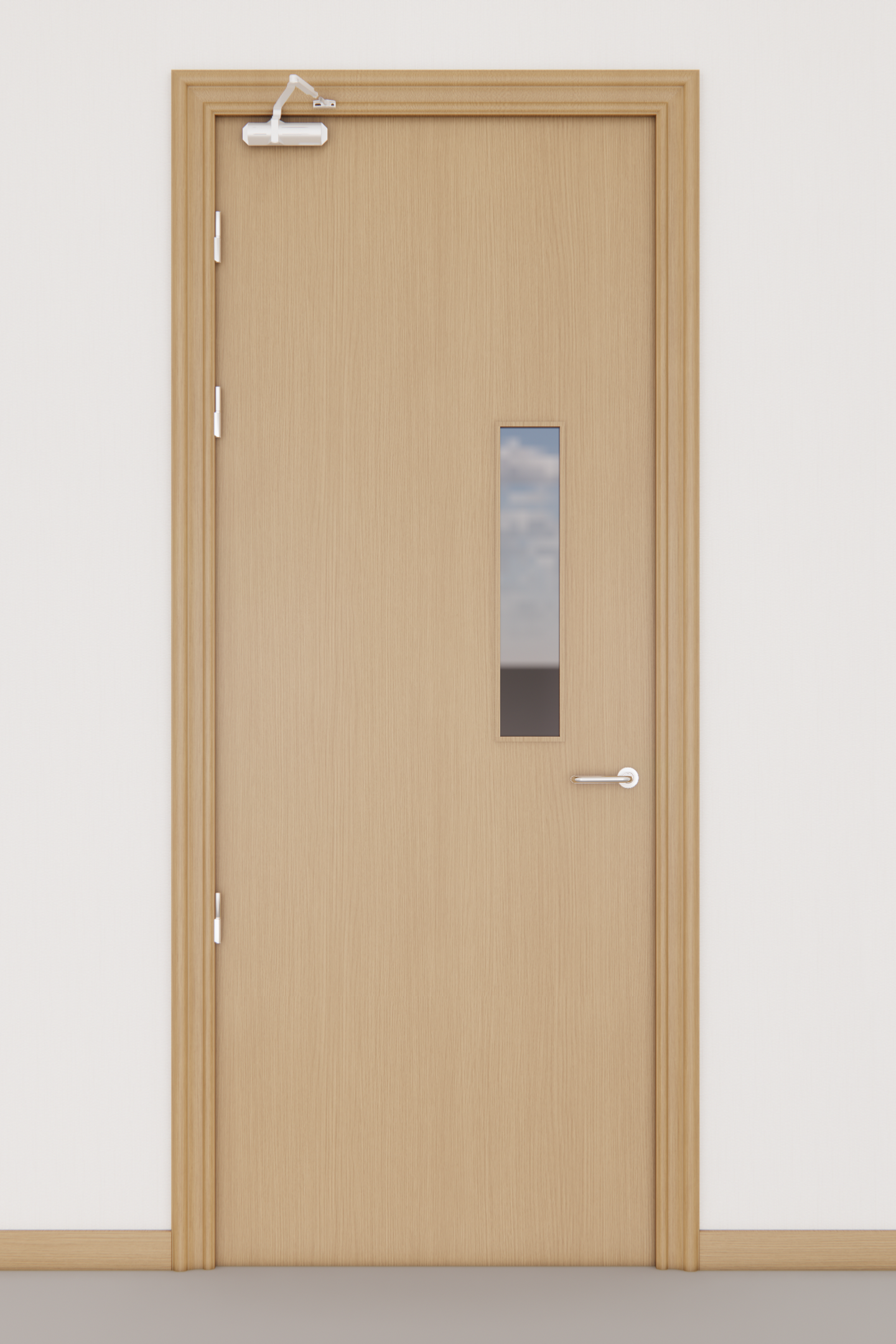

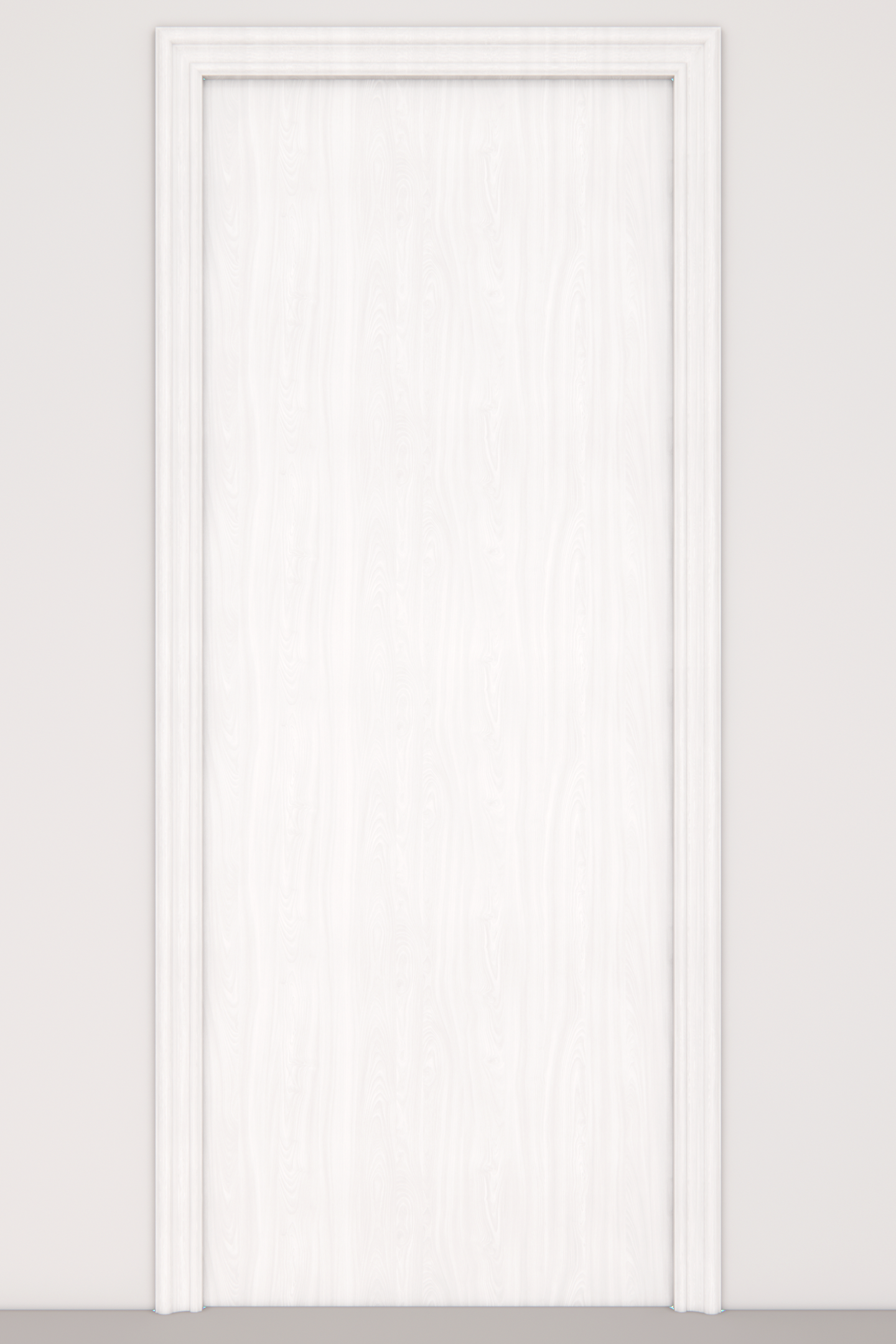

Fire Door Set Specification

1. Included Components:

  • Door leaf (45 mm thickness)

  • Door frame

  • Decorative architraves

  • Note: all colour-matched for a uniform appearance

2. Finish & Colour Options:
(a) Flush, White, Woodgrain
(b) Flush, Natural Wood Colour, Woodgrain
(c) Flush, Light grey, No Grain

3. Size (W × H, mm): Custom sizes available

4. Core Construction: Solid timber core

5. Fire Resistance: 30 minutes

6. Smoke Control: Optional

7. Vision Panel (Fire-rated Glass): Optional

8. Ironmongery (Hardware): Optional (handles, hinges, closers, locks, etc.)

9. Surface Finish: Fully prefinished – no on-site painting required
